2 wings wood cnc router:

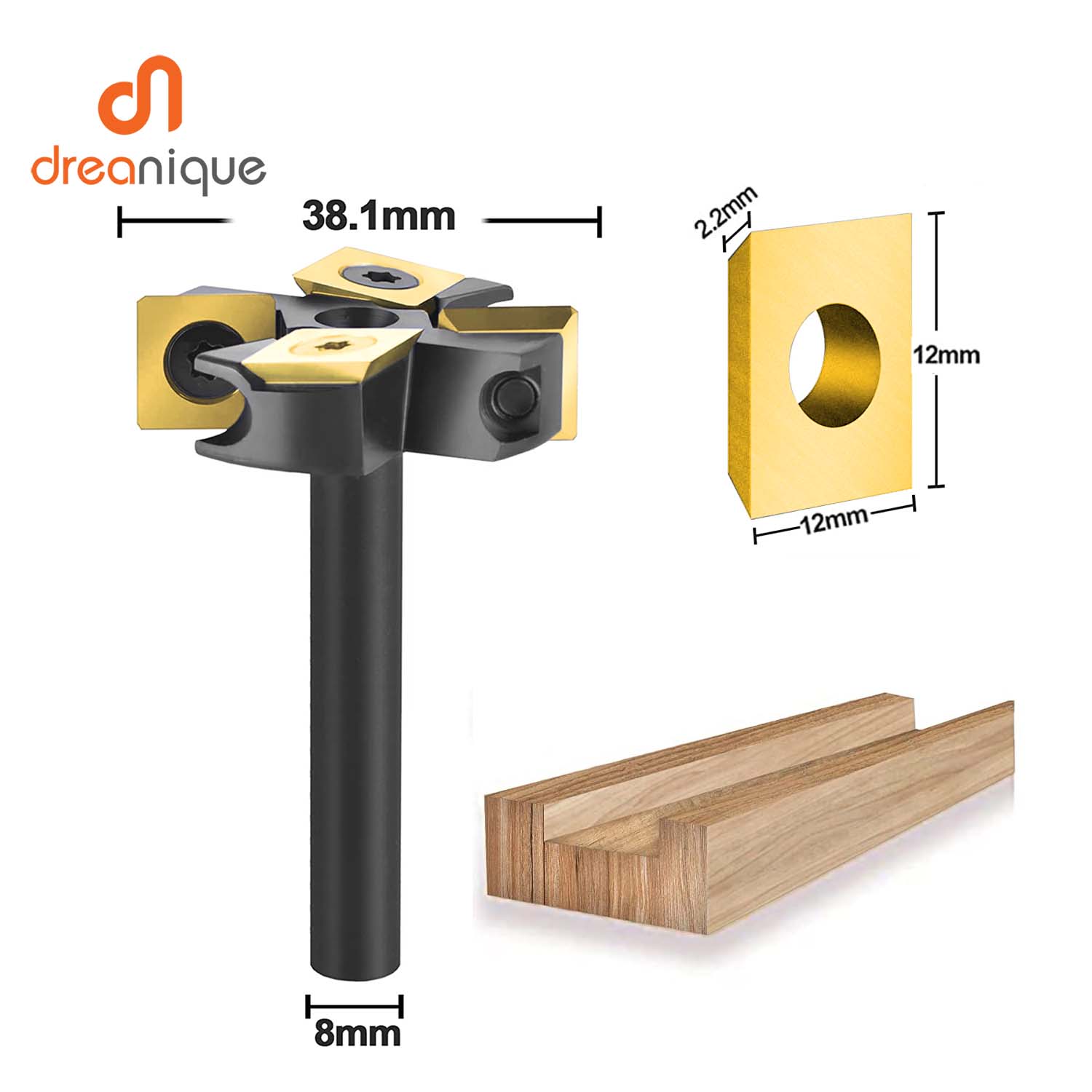

Shank diameter : 8mm 12mm;

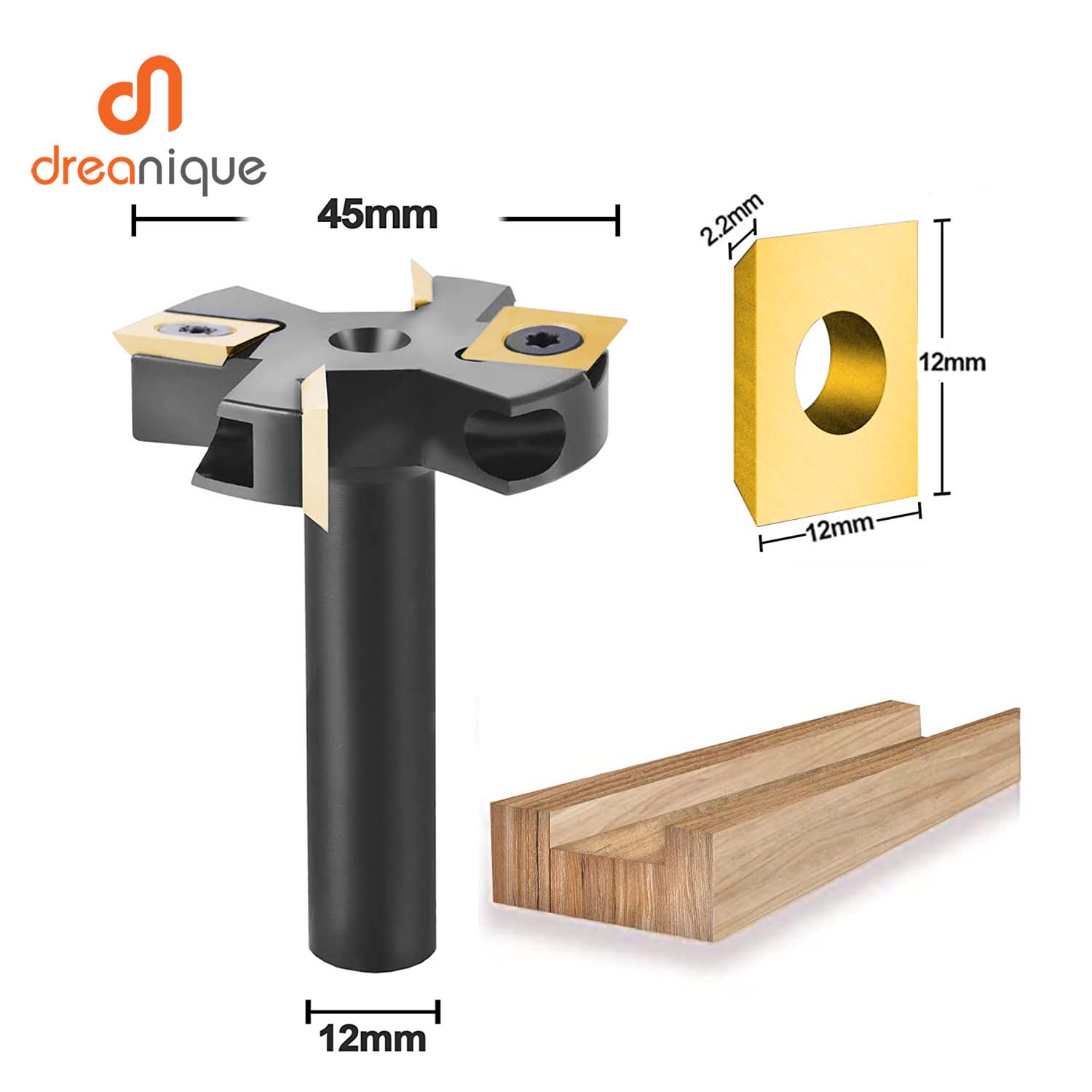

Cutting diameter : 38.1mm, 45mm;
Carbide inserts : 12*12*2.2mm.
Grade of carbide inserts ：YG6X.
Countersunk screw : M4*7
Coating of insertsATS-coated
Applicable scenarios: Face milling, sloting, shoulder milling
Advantages:
1、The entire miling cutter body is machined in one step from a steel rod in machining center, offering higher precision and better strength compared to welded knife bodies

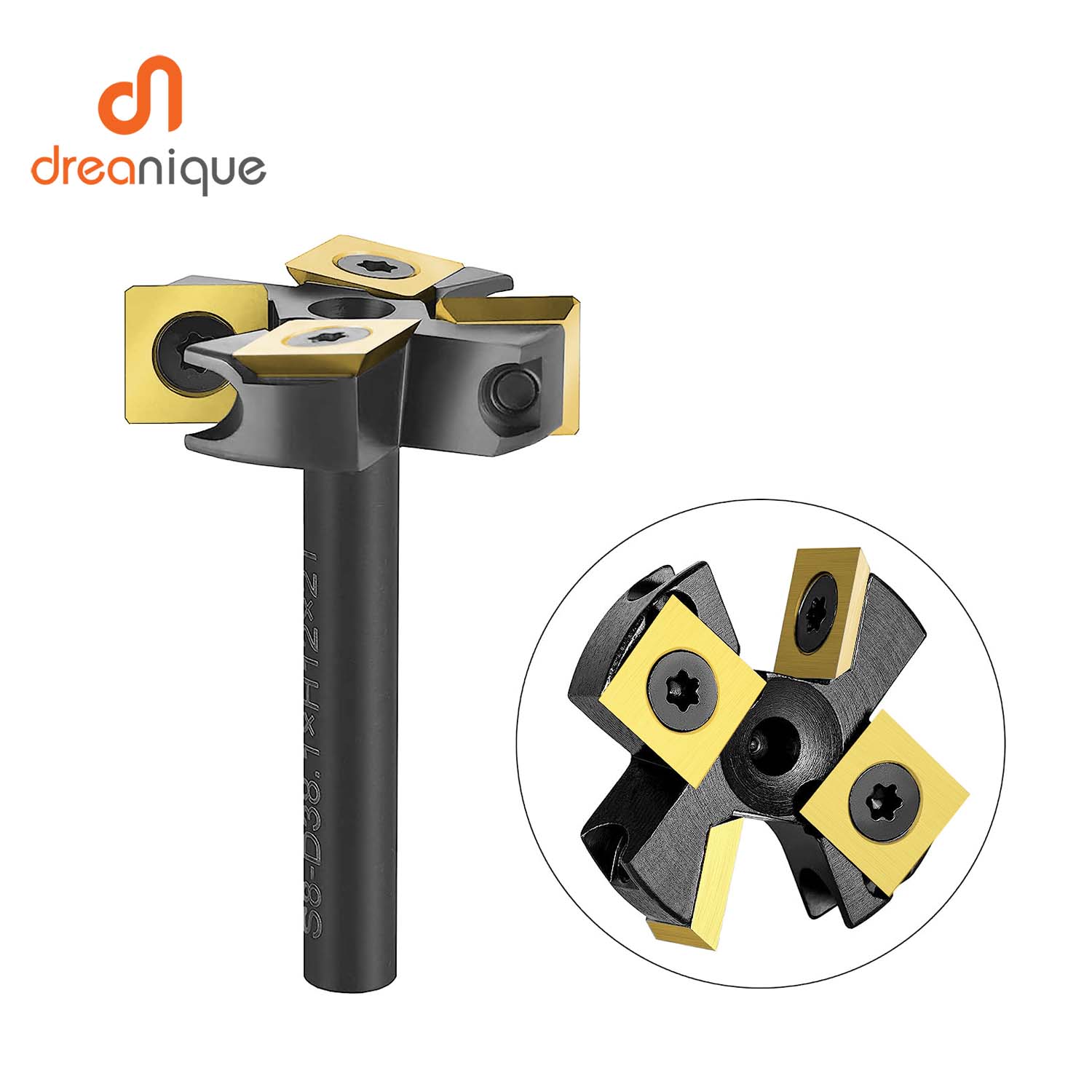

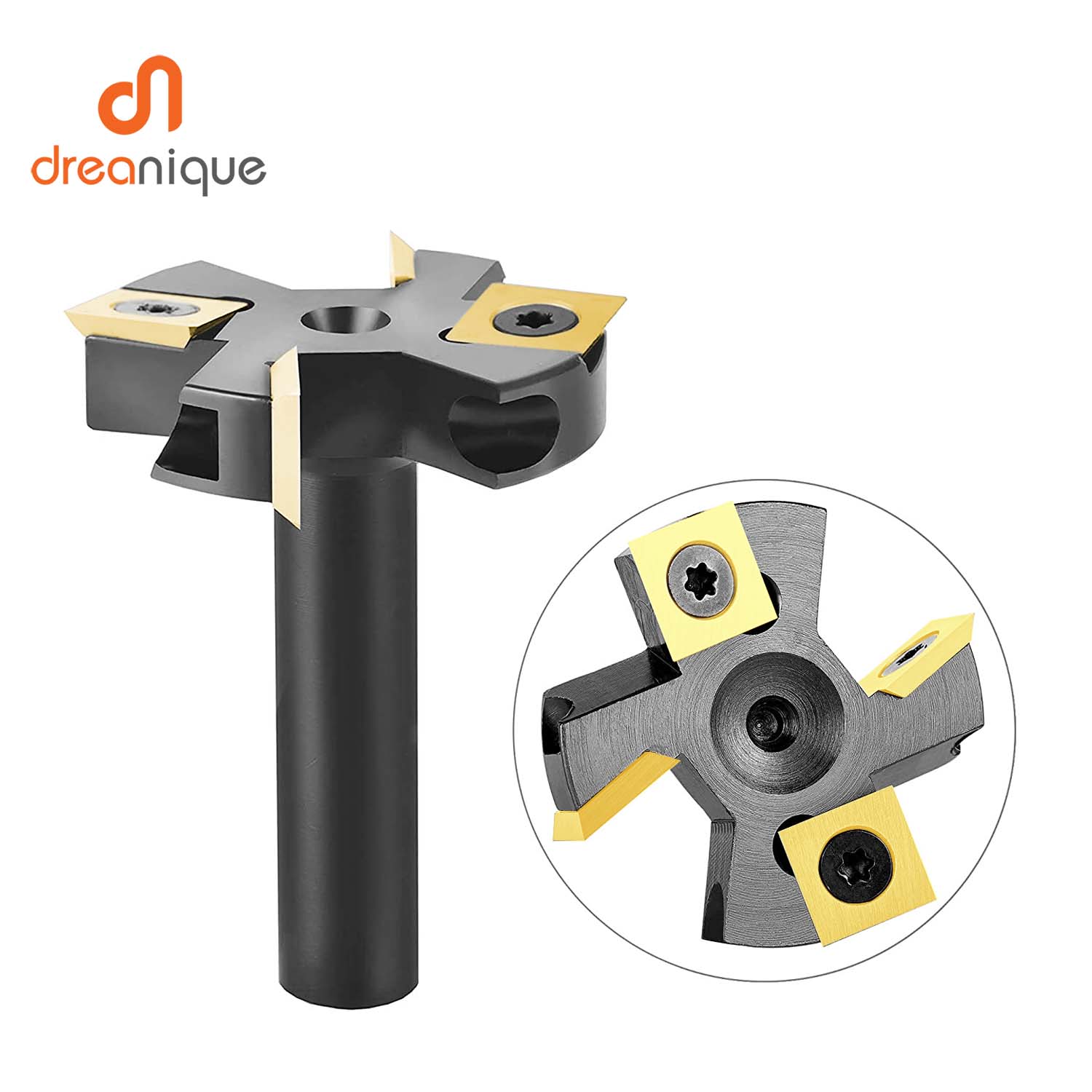

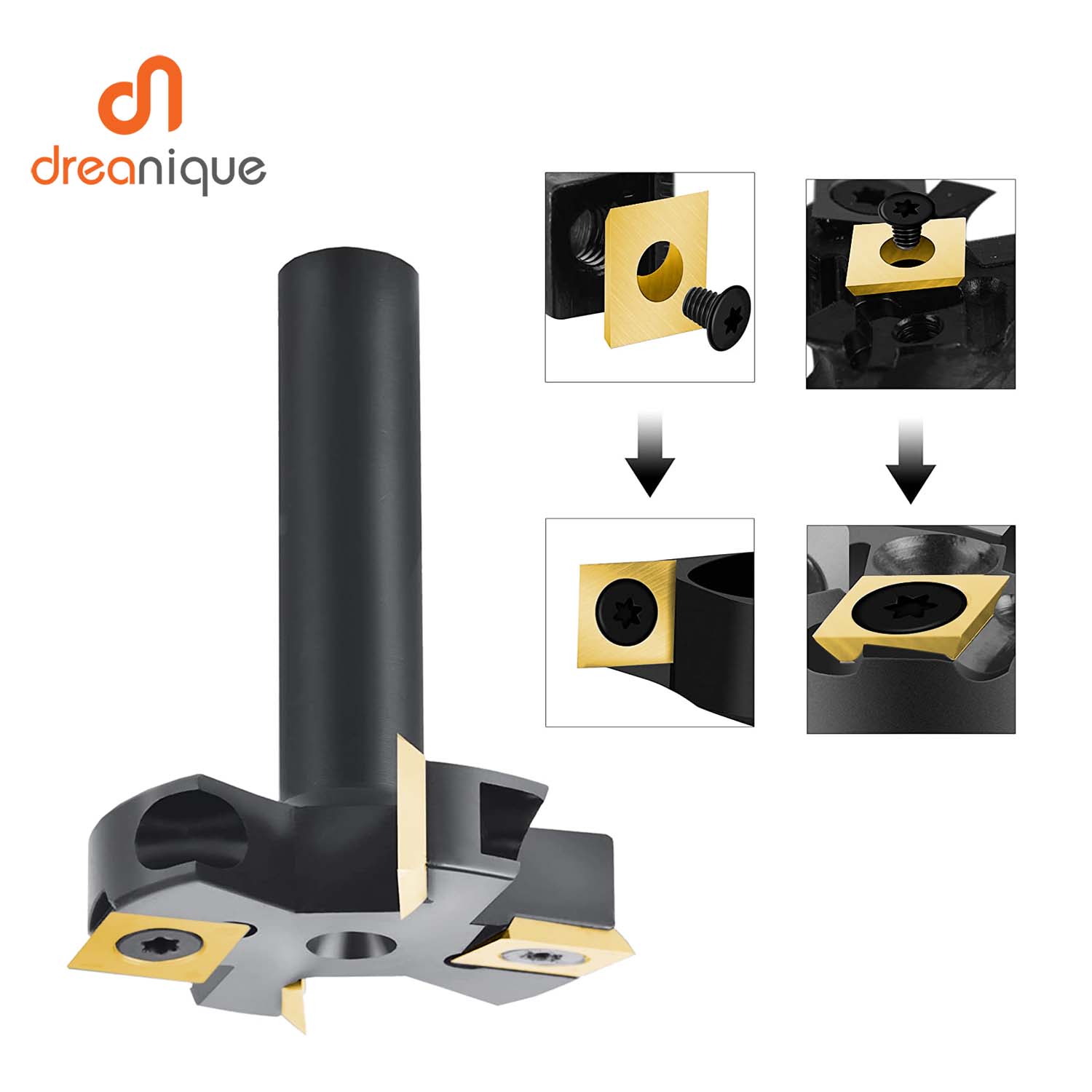

2、The surfacing router bit utilizes 4-sid solid carbide inserts, all 4 edges can be used. Can replace the carbide inserts when needed, instead of replacing the whole bit, is a more cost effective solution.
3、thicker inserts than other sellers: Our inserts are 2.2mm thick, which offers a longer tool life compared to inserts that are only 1.5mm thick used by other sellers.
4、ATS-coating: The inserts are coated with ATS coating, which extends the tool life by twice as long compared to non-coated inserts
1 This professional bottom cleaning router bit is not only perfect for wood slab flattening, resurface or plane the top surface of the spoilboard, but also for trimming and slotting/grooving. Great replacement bit tool for woodworking.
2、ATS coating: ATS is a cermet coating of amorphous tungsten sulphide which forms a hard and smooth protective layer on the surface of the tool.
ATS coating offers several advantages such as improved wear resistance, heat resistance, and corrosion resistance. It helps to extend the tool's lifespan and maintain its cutting performance in high-temperature and corrosive environments. The coating also reduces cutting forces, resulting in improved cutting efficiency and quality.
3、Longer tool life: Using ATS-coated inserts, the tool life is doubled compared to non-coated inserts.

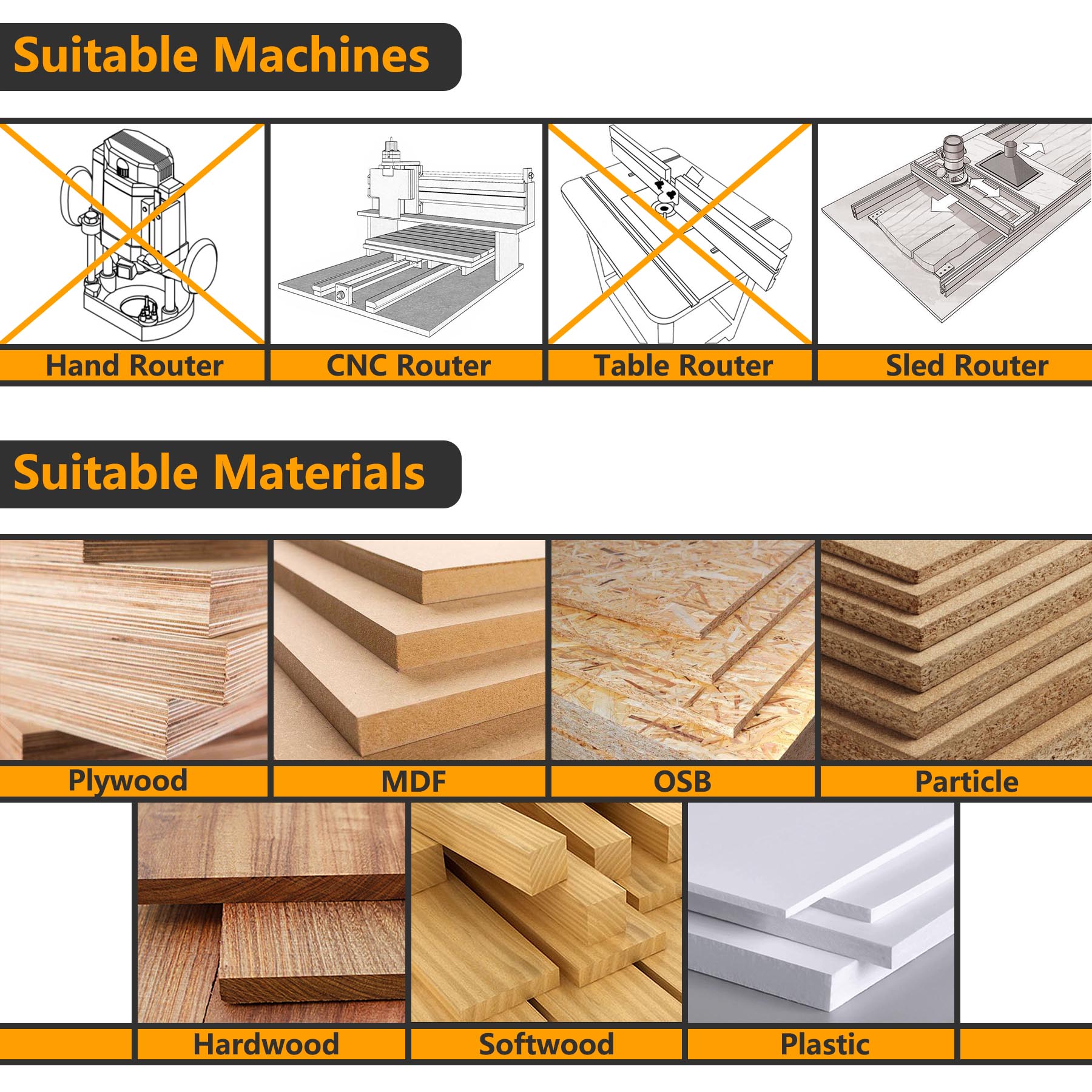

Suitable for soft and hard woods, MDF, laminate, particle board, plywood compact panel, acrylic and etc.
Avoid cutting metal and non-wood materials;
Use on CNC and other automatic routers. Such as woodworking engraving machine, trimming machine, etc.
Dreanique Recommend Cutting parameter:
D38.1: Feed 5000mm/min, RPM: 12000-16000, Cutting Depth(mm per path): 2mm-3mm.
D45: Feed 3500mm/min, RPM: 11000-15000, Cutting Depth(mm per path): 2mm-4mm.
Packing:
A planer bit includs: planer bit x 1, ATS-coating carbide inserts x 4, wrench x 1
